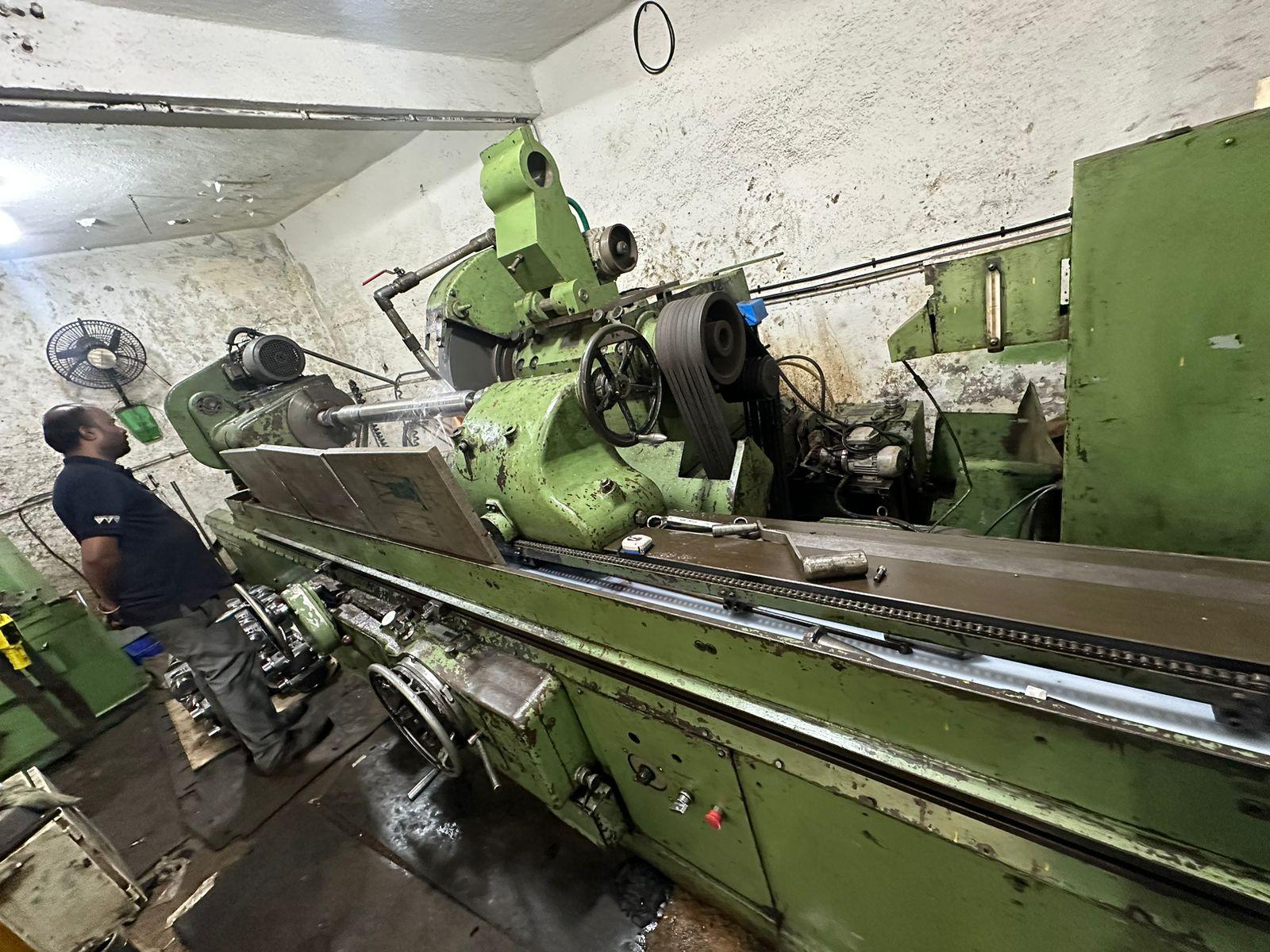

Landis grinding grinding diameter 740mm grinding length 3000 mm centre height 370 mm swivel table angle max. +4|-4 Grad grinding wheel speeds 1146/1322 U/min total power requirement 25 KVA weight of the machine. 12t workpiece weight in steadies max. 2500 kg table speeds 0,05 - 3,8 m/min grinding wheel size 900 × 100 × 305 mm workpiece turning speeds 4 - 250 U/min
Technical specifications
16 parameters for this machine
- Auto Loading Available
NO
- Condition
Good
- Coolant System Available
YES
- Grinding Capacity Range
3000MM
- Grinding Wheel Motor Power
33 HP
- Grinding Wheel Size
900x100x305
- Machine Brand / Manufacturer
LANDIS LUND
- Machine Description
Landis grinding grinding diameter 740mm grinding length 3000 mm centre height 370 mm weight of the machine. 12t workpiece weight in steadies max. 2500 kg
- Machine Location
NAVI MUMBAI
- Machine Operation
BOTH
- Maximum Grinding Diameter
740 mm
- Model Number
HMPB
- Price Type
Negotiable
- Regulating Wheel Size
900x100x305
- Working Status
Partially Working
- Year
1995
