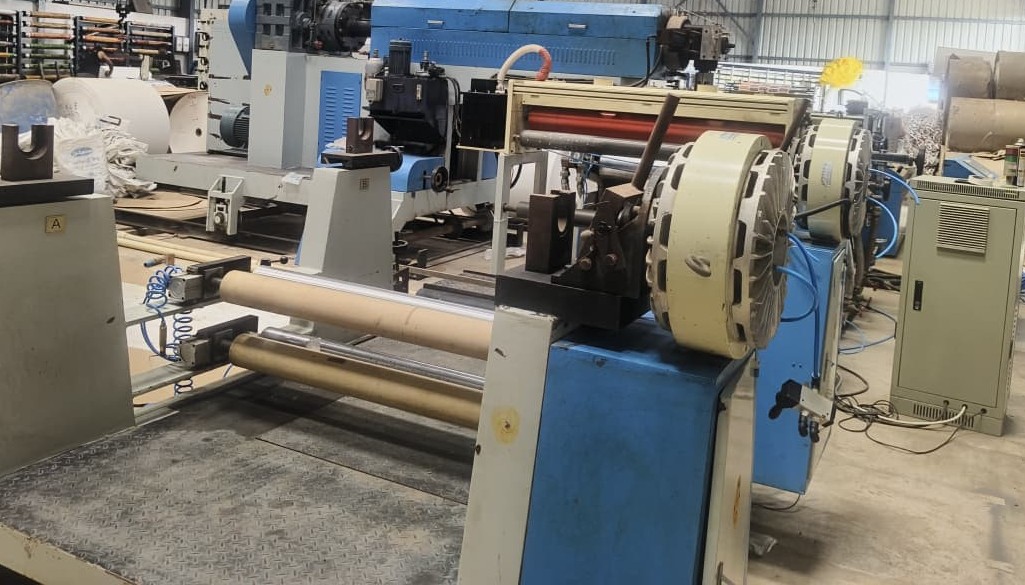

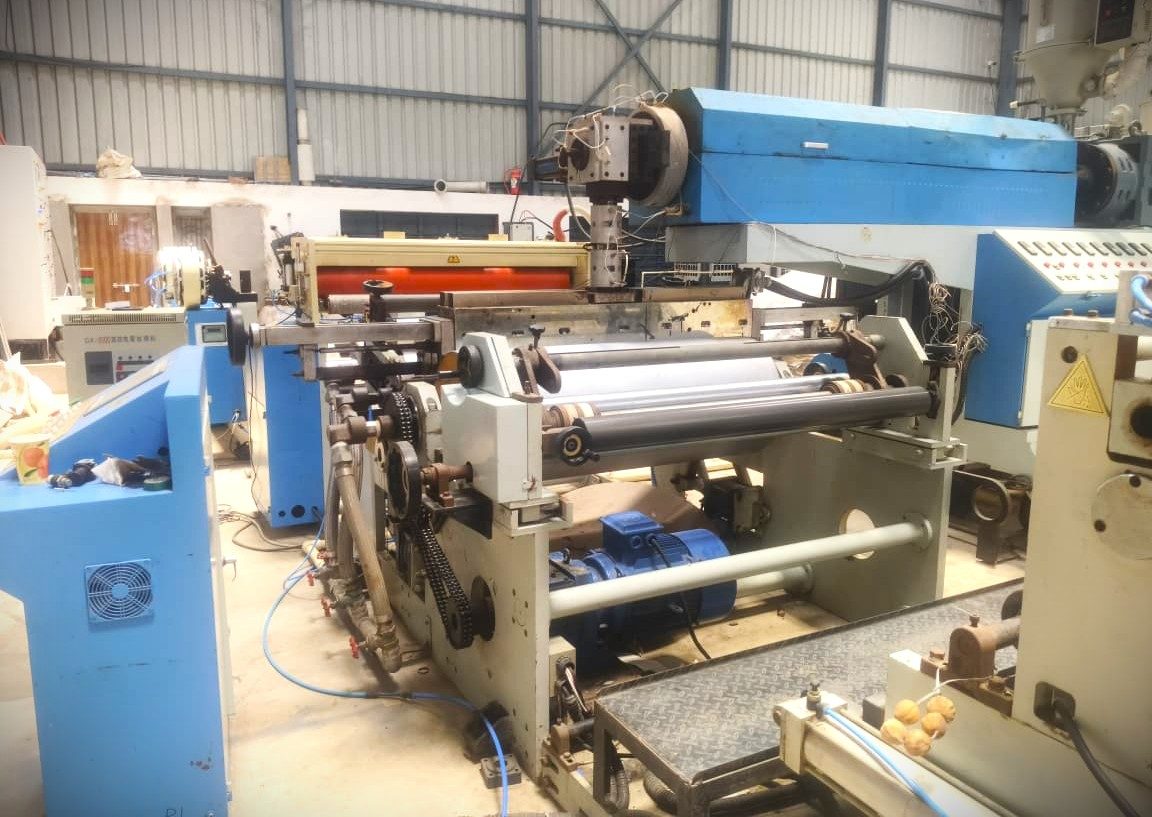

For Sale: 2018 Yilian SJFM-1300A High-Speed Extrusion PE Coating / Laminating Machine Model: Yilian SJFM-1300A Year: 2018 Usage: Under 1000 tons (very low running hours) Condition: Good working condition, well-maintained ***Key Specifications*** Working width: Approx. 1200–1300 mm Max. coating / laminating speed: 100–150 m/min Suitable resins: LDPE, PP, EVA, EAA Base materials: Paper (35–425 GSM), kraft paper, non-woven, woven fabric, aluminium foil, etc. Coating thickness: 0.01–0.11 mm Max. extrusion output: ~200 kg/h Unwind & rewind diameter: 1300 mm Total power: Approx. 80 kW Machine weight: Approx. 15–20 tons FeaturesHigh-speed extrusion coating / laminating line Suitable for paper cup stock, packaging paper, food-grade coated paper, and related products Corona treatment, automatic tension control, and PLC system Complete line in good running condition price : Negotiable
Technical specifications
20 parameters for this machine
- Condition
Excellent
- Cooling Tank Available
YES
- Cutter Available
YES
- Extruder Type
SINGLE_SCREW
- Extrusion Type
FILM_EXTRUSION
- Haul Off Unit Available
NO
- Machine Brand / Manufacturer
Yillian
- Machine Description
2018 Yilian SJFM-1300A High-Speed Extrusion PE Coating Machine Under 1000 ton usage, T-die , 1200–1300 mm width, 100–150 m/min speed, Φ105 mm screw, excellent working condition
- Machine Location
ANDHRA PRADESH
- Machine Type
EXTRUSION_LINE
- Main Motor Power
30 HP
- Model Number
SJFM 1300A
- Number Of Heating Zones
13
- Price Type
Negotiable
- Production Capacity
200 Kg/Hr
- Screw Diameter
105 mm
- Suitable Material
LDPE
- Vacuum Calibration Unit Available
YES
- Working Status
Running
- Year
2018
