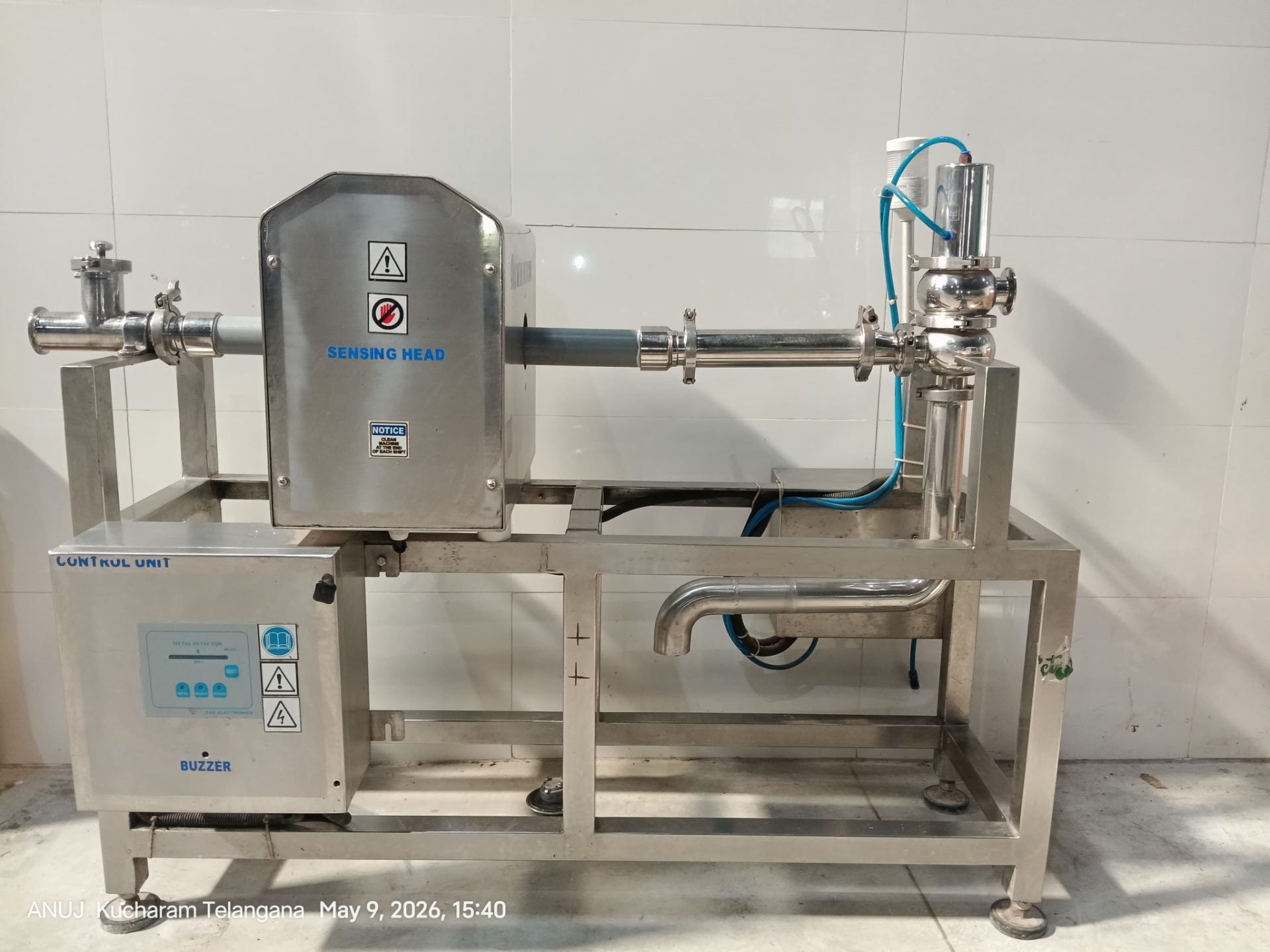

ipeline Metal Detector is an inline metal detection system used in food processing lines to detect and remove ferrous, non-ferrous, and stainless-steel contaminants from liquid and semi-liquid products. It features a hygienic SS 304 construction and an automatic pneumatic butterfly-valve rejection system for continuous product inspection. Usage: Ideal for processing fruit crush, fruit fillings, fruit syrups, jams, sauces, concentrates, and other liquid or viscous food products, ensuring product safety, quality, and compliance with food safety standards.
Technical specifications
23 parameters for this machine
- Accessories / Equipment Included
Main Machine
- Additional Specifications

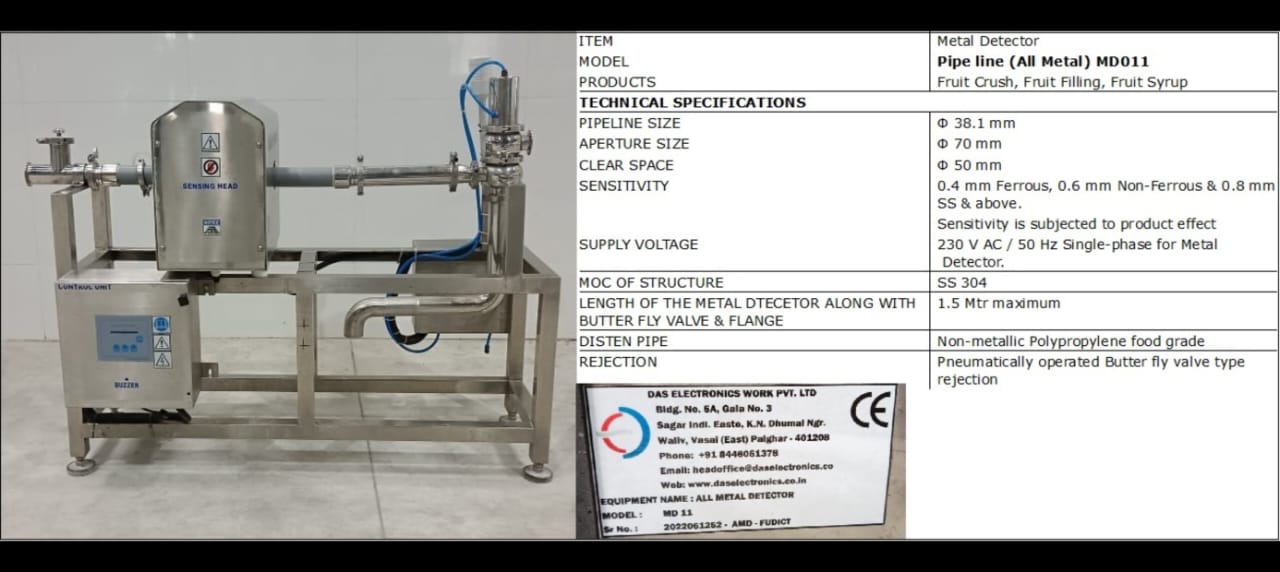

Pipeline Size: Ø38.1 mm | Aperture Size: Ø70 mm | Clear Space: Ø50 mm | Sensitivity: 0.4 mm Ferrous, 0.6 mm Non-Ferrous, 0.8 mm , Length: Max. 1.5 m | Discharge Pipe: Food-grade Polypropylene | Rejection: Pneumatic Butterfly Valve Type
- Application
FMCG
- Brand / Manufacturer
DAS Electronics
- Condition
Excellent
- Control System
STANDARD
- Conveyor Height
0 mm
- Conveyor Width
0 mm
- Drive Type
DIRECT_DRIVE
- Equipment Type
MATERIAL_HANDLING_SYSTEM
- Hopper Available
YES
- Machine Condition
EXCELLENT
- Machine Location
Hyderabad
- Material Of Construction
SS304
- Model Number
Pipe Line (All Metal) MD011
- Motor Power
2 HP
- Portable / Fixed
PORTABLE
- Power Requirement
230V
- Price Type
NEGOTIABLE
- Purchase Month
6
- Variable Speed Drive
NO
- Working Status
RUNNING
- Year
2022
